Bright Rock^® Drywall Partition System

A Bright Rock^® gypsum wall drywall partition system is a light weight drywall systems consisting of Bright Rock^® gypsum Ultra steel and Bright Rock^® gypsum steel regular Gi frames with gypsum plaster board screw fixed on either side with drywall screws. The key benefits of a gypsum wall dry wall partition system are

Aestheti c appeal – seamless and crack free surfaces allowing ease of decoration with paint, tiles or wall paper

A) Excellent performance in terms of fire rating thermal and sound insulation

B) Speed of installation – 3 to 4 times faster than comparable masonry systems

C) Light weight – 8 to 10 time s lighter than comparable masonry systems

D) Dry construction – Clean, dry and dust free work environment

E) Flexibility in creating and dividing spaces according to your needs

Bright Rock^® Ultra Gypsum Steel +

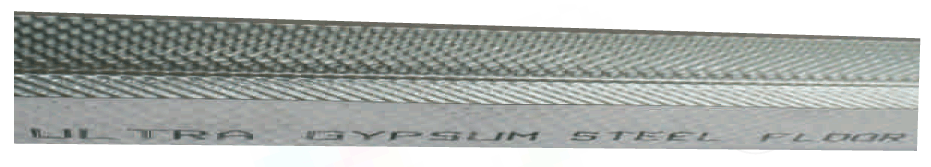

Floor and ceiling channel Partition Sections Application

Designed For Securing Wall Studs at Floor and Ceiling Junctions Fixed to Floor and Ceiling to accommodate Bright Rock^® Ultra Gypsum Steel Studs.

Dimensions in mm:

Total Width	Side 1	Side 2	Thickness	Length
50	31	31	0.55	3660
72	31	31	0.55	3660
94	31	31	0.55	3660
148	31	31	0.55	3660

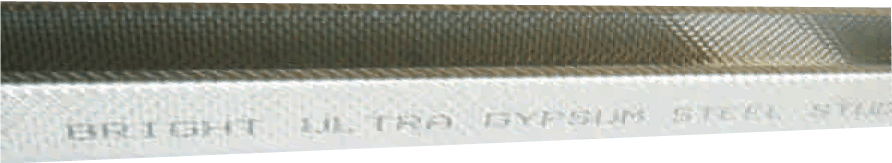

‘C’ Stud Partition Sections Application

Fix around walls / partitions

Dimensions in mm:

Total Width	Side 1	Side 2	Thickness	Length
48	36	34	0.55	2440
48	36	34	0.55	2745
48	36	34	0.55	3050
48	36	34	0.55	3660
70	36	34	0.55	3050
70	36	34	0.55	3660
92	36	34	0.55	3050
92	36	34	0.55	3660
146	36	34	0.55	3660
