Bright Rock^® Ultra Gypsum Steel Components

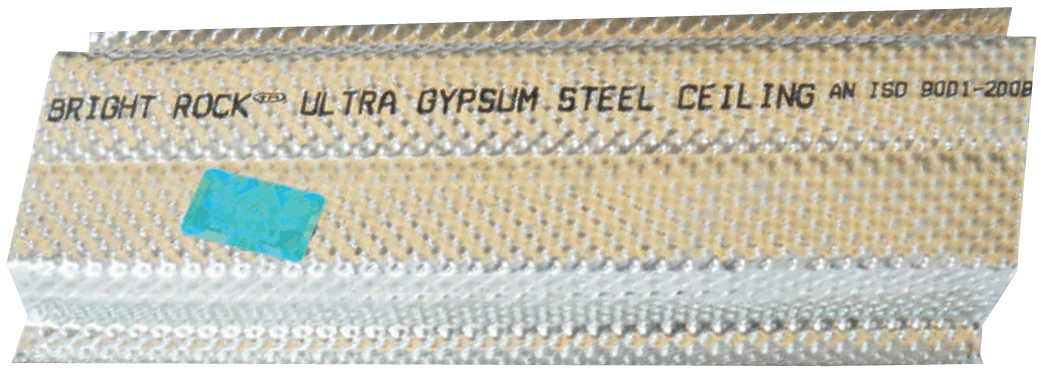

Ceiling Section - Ultra Suspended Ceiling

The main supporting section to fix plasterboard

Dimensions in mm:

Total Width	Height	Wed Width	Thickness	Length
80	26	50	0.55	3660

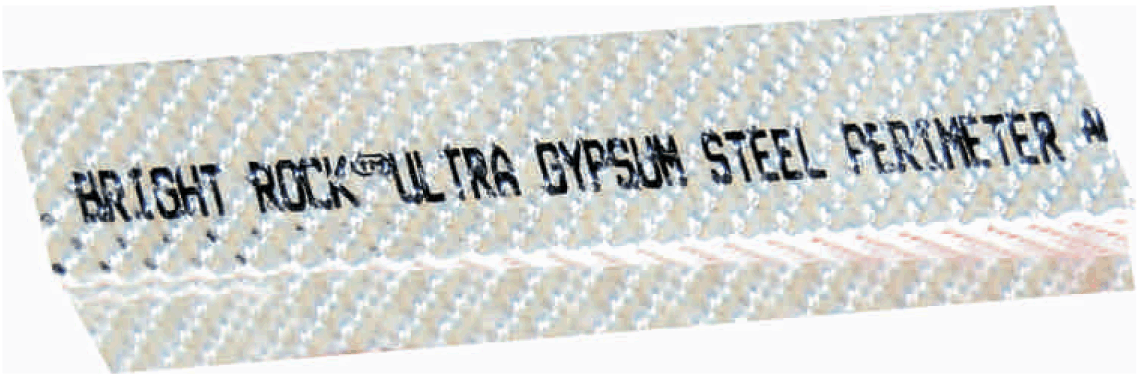

Perimeter Channel - Ultra Suspended Ceiling

Fix around walls / partitions

Dimensions in mm:

Total Width	Height	Wed Width	Thickness	Length
25	20	28	0.55	3660

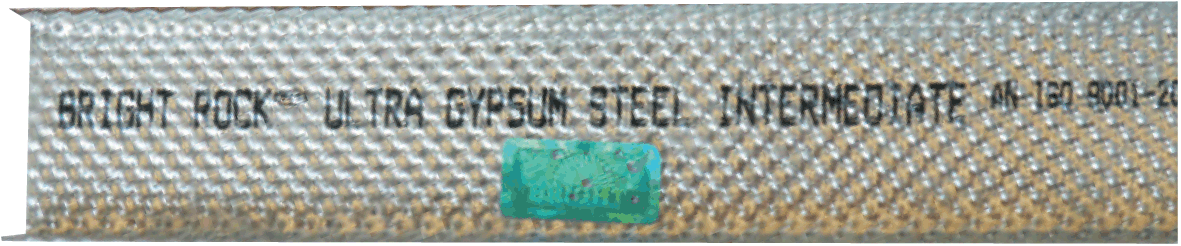

Intermediate Channel - Ultra Suspended Ceiling

Primary section to support the ceiling section

Dimensions in mm:

Total Width	Side1	Side2	Thickness	Length
45	15	15	0.80	3660

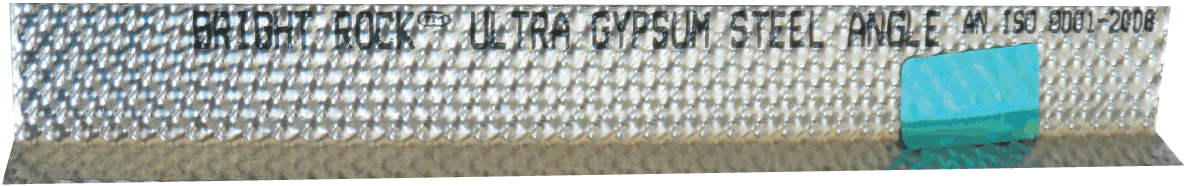

Ceiling Angle - Ultra Suspended Ceiling

To provide suspension from the structural soffit

Dimensions in mm:

Side1	Side2	Thickness	Length
10	25	0.55	3660
