Bright Rock^® T Grid Suspension System

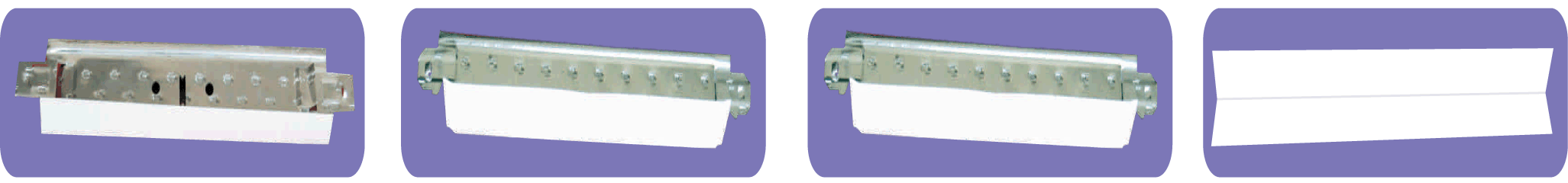

32 Matrix White

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	24	32	3600	0.30
Cross Tee	24	32	1200	0.30
Cross Tee	24	32	600	0.30
Wall Angle	19	22	3000	0.40

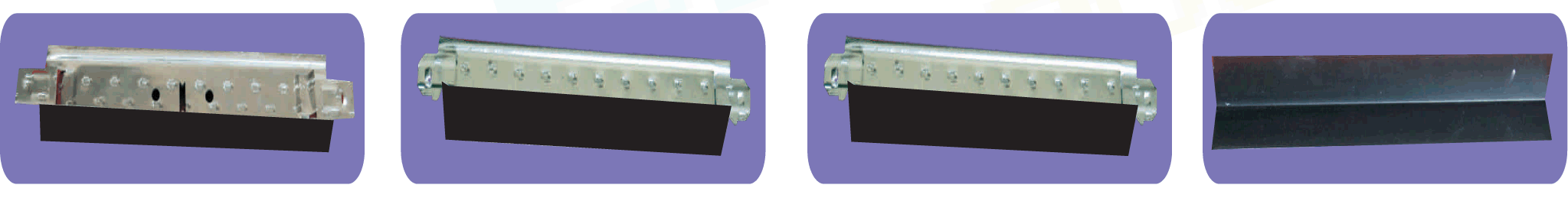

32 Matrix Black

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	24	32	3600	0.30
Cross Tee	24	32	1200	0.30
Cross Tee	24	32	600	0.30
Wall Angle	19	22	3000	0.40

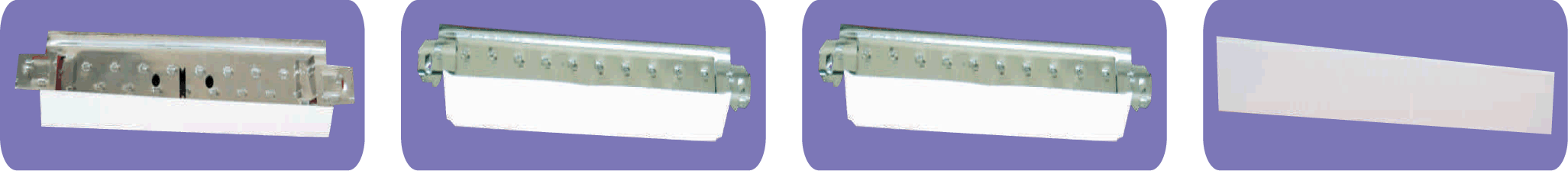

32 Matrix White

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	24	32	3600	0.30
Cross Tee	24	25	1200	0.30
Cross Tee	24	25	600	0.30
Wall Angle	19	22	3000	0.40

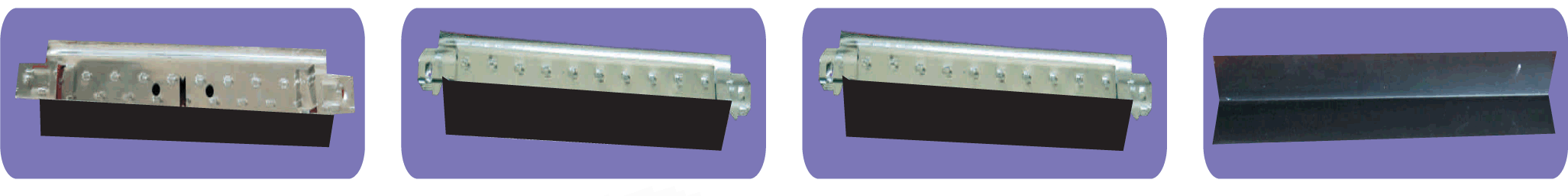

32 Matrix Black

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	24	32	3600	0.30
Cross Tee	24	25	1200	0.30
Cross Tee	24	25	600	0.30
Wall Angle	19	22	3000	0.40

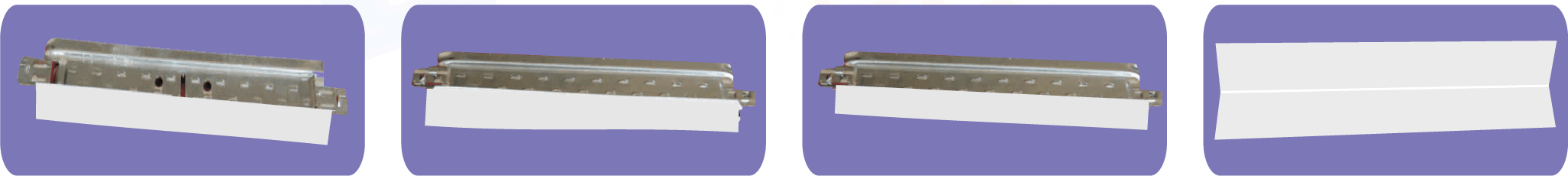

14 Micro White

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	14	32	3600	0.30
Cross Tee	14	32	1200	0.30
Cross Tee	14	32	600	0.30
Wall Angle	19	22	3000	0.40

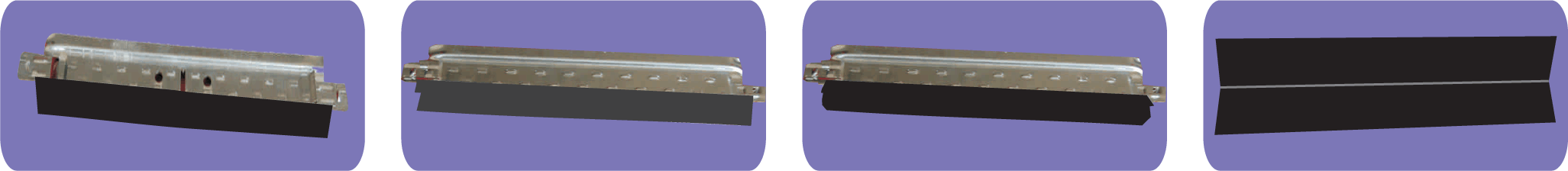

14 Micro Black

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	14	32	3600	0.30
Cross Tee	14	32	1200	0.30
Cross Tee	14	32	600	0.30
Wall Angle	19	22	3000	0.40

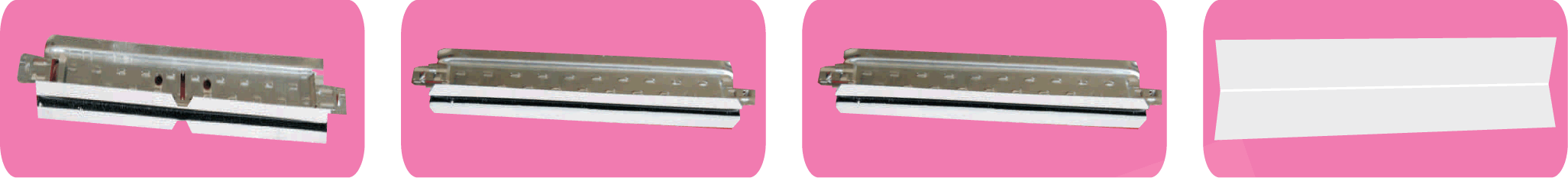

14 Micro White

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	14	32	3600	0.30
Cross Tee	14	25	1200	0.30
Cross Tee	14	25	600	0.30
Wall Angle	19	22	3000	0.40

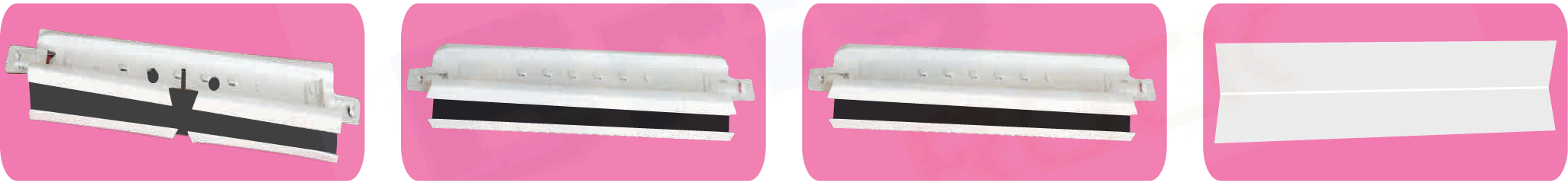

38 Silhouette (Black- White)

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	15	38	3600	0.30
Cross Tee	15	38	1200	0.30
Cross Tee	15	38	600	0.30
Wall Angle	19	22	3000	0.30

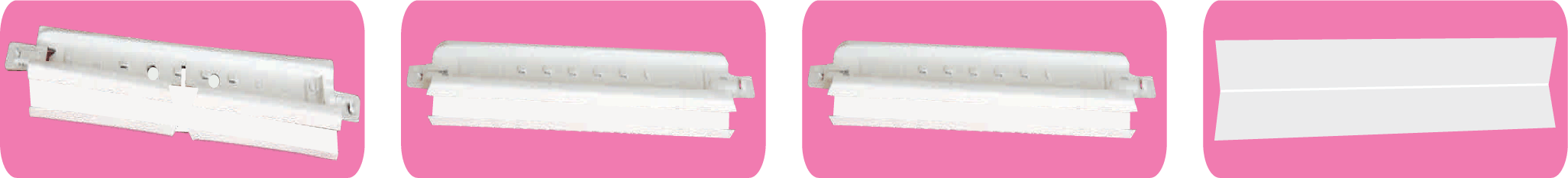

38 Matrix Silhouette(White-White)

Dimensions in mm:

Component	Width(mm)	Height(mm)	Length(mm)	Thickness(mm)
Main Tee	15	38	3600	0.30
Cross Tee	15	38	1200	0.30
Cross Tee	15	38	600	0.30
Wall Angle	19	22	3000	0.40
